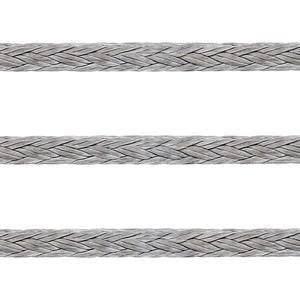

This rope is designed for high load applications where exceptionally low weight is required - making for an excellent wire-replacement rope. The heat treatment and polyurethane coating applied increases the rope's abrasion resistance, prolonging its life.
Features:
- Low creep
- Light weight
- 15 x stronger than steel wire
- Easy to splice
- Does not absorb water
Applications:
- Wire rope replacement
- Strops
- Kickers
- Guys
- Lifting
- Towing
- Check stays
Brochure available on request.
Please contact our sales line if you require a larger diameter.
*Remember to update your cart amount during the checkout process to the specific amount of meters you require as quantity will only be one meter if you add to your cart*
Material:
Stealth Fibre®
Industry:
4x4 & Towing; Stunt Rigging; Leisure & Commercial Marine
Construction:
12-Strand Single Braid
Specifications:
Technical
Core Material:
Stealth Fibre®
Construction:
12-Strand Single Braid
Standard Range
Diameters:
1 – 105 mm (larger diameters available on request)
Reel Length:
200 m
Colour:
Silver-grey
Break Loads:
Metric
Nominal Diameter (mm) | Spliced Break Load (t) | Linear Break Load (t) |
---|---|---|
1 | 0.28 | 0.31 |
1.5 | 0.42 | 0.47 |
1.75 | 0.55 | 0.61 |
2 | 0.85 | 0.94 |
3 | 1.3 | 1.4 |
4 | 2.2 | 2.4 |
5 | 3.1 | 3.4 |
6 | 4.3 | 4.8 |
7 | 5.2 | 5.8 |
8 | 6.6 | 7.3 |
9 | 8.3 | 9.2 |
10 | 9.7 | 10.8 |
12 | 15.3 | 17.0 |
14 | 17.9 | 19.9 |
16 | 21.2 | 23.5 |
18 | 31.3 | 34.7 |
19 | 34.9 | 38.7 |
20 | 40.8 | 45.3 |
22 | 47.0 | 52.2 |
24 | 55.2 | 61.3 |
26 | 65.3 | 72.5 |
28 | 76.0 | 84.4 |
30 | 82.5 | 91.6 |
32 | 84.6 | 93.9 |
34 | 95.0 | 105.5 |
36 | 106.8 | 118.5 |
38 | 118 | 130 |
40 | 131 | 145 |
42 | 143 | 158 |
44 | 157 | 174 |
46 | 168 | 186 |
48 | 181 | 200 |
50 | 191 | 212 |
52 | 201 | 223 |
54 | 215 | 238 |
56 | 230 | 255 |
58 | 248 | 275 |
60 | 268 | 297 |
62 | 293 | 325 |
64 | 320 | 355 |
66 | 339 | 376 |
68 | 360 | 399 |
70 | 379 | 420 |
72 | 400 | 444 |
74 | 424 | 470 |
76 | 450 | 499 |
78 | 474 | 526 |
80 | 500 | 555 |
88 | 600 | 666 |
96 | 710 | 788 |
105 | 850 | 943 |
